Description

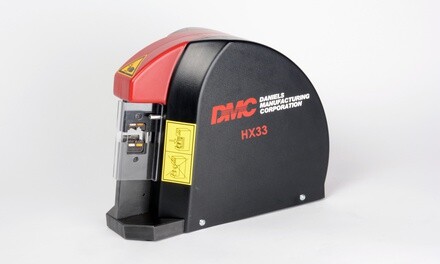

The DMC HX33 is a bench top pneu- matic crimp machine that is compatible with M22520/5 military and many DMC “Y-die” series crimp dies. The die sets are interchangeable and can be easily installed and removed from the HX33 pneumatic crimp tool.
Utilizing the enclosed foot pedal, the crimping cycle of the HX33 is activated and allows the operator to have both hands free to insert the crimped item and wire. All HX33 crimp tools are equipped with a positive closing mechanism to ensure consistent crimp quality.
The HX33 has an emergency release button that will open the crimping jaws in the event of blocked jaws caused by operation or handling errors or wrongly placed terminals.
• Foot Pedal Activation • Full Cycle Control
• CE Marked
• In-Line Die Closure
• Accepts Most “Y” Dies
• Dimensions: 11.8”L x 4.9”W x 10.2”H • Weight With Foot Pedal: 32lbs
• Crimp Force: 4000lb @ 90PSI
